Best Auto-Darkening Welding Helmets in 2026: Lincoln, Miller, ESAB Compared
An auto-darkening welding helmet adjusts its lens shade automatically when it detects an arc, eliminating the need to manually flip a fixed-shade lens before striking. According to ANSI Z87.1 standards, auto-darkening filters (ADF) must transition from a light state (typically shade 3 or 4) to a dark welding state (shade 8-13) fast enough to protect the welder’s eyes before arc radiation causes damage. The quality of that transition — how fast, how consistently, and how clearly the lens performs — separates a helmet that prevents eye strain from one that causes it.
This guide compares five auto-darkening helmets spanning $50 to $400, evaluated on manufacturer-published specifications for lens reaction time, optical clarity, viewing area, shade range, sensor count, and comfort. All specs and claims are sourced from product data sheets and manufacturer documentation.
Key Specs That Matter
Six specifications determine welding helmet performance: optical clarity rating (1/1/1/1 is best per EN379), reaction time (1/20,000s is the professional standard), viewing area in square inches, shade range (9–13 minimum; 5–13 for TIG), sensor count (four sensors for out-of-position welding), and power source (solar + battery backup for longest service life).
- Optical clarity rating: Expressed as four numbers (e.g., 1/1/1/1) per EN379 standards, rating clarity, diffusion, homogeneity, and angle dependence. Lower numbers are better. A 1/1/1/1 rating is the highest achievable and means the lens produces minimal distortion across all four categories.
- Reaction time (light to dark): Measured in fractions of a second. Per manufacturer specs, premium helmets switch in 1/20,000s (0.05ms), while budget models may take 1/10,000s (0.1ms) or slower. Faster reaction times matter most for TIG welding at low amperages, where the arc is less intense and slower lenses may not trigger consistently.
- Viewing area: Measured in square inches. Larger viewing areas reduce the need to reposition the head to see the weld joint and surrounding workpiece. This directly affects weld quality on longer beads and in tight joint configurations.
- Shade range: Most helmets offer shade 9-13 for welding. Helmets with a grinding mode (shade 3-4) or low-amperage capability (shade 5-8) offer additional utility for TIG welding at low amperages and non-welding tasks.
- Number of sensors: Sensors detect the arc and trigger the lens transition. Two-sensor helmets can fail to darken if one sensor is blocked by the workpiece or fixturing. Four sensors provide redundant coverage and are recommended for out-of-position welding.
- Power source: Solar-powered helmets with battery backup offer the longest service life. Battery-only models require periodic replacement, which can be inconvenient if the battery type is proprietary.
Top Picks Based on Specifications
Lincoln Electric Viking 3350 — Best Overall
| Spec | Value |
|---|---|
| Viewing Area | 12.5 sq in (3.74” x 3.34”) |
| Shade Range | 5-13 |
| Reaction Time | 1/20,000s |
| Optical Clarity | 1/1/1/1 |
| Sensors | 4 |
| Weight | 18 oz |
| Power Source | Solar with lithium battery backup |
| Grind Mode | Yes (external button) |
| Warranty | 3 years |
| Price Range | $290-$350 |
According to Lincoln Electric’s specifications, the Viking 3350 features 4C lens technology, which achieves a 1/1/1/1 optical clarity rating across all four EN379 categories. Per Lincoln’s product documentation, this means the lens produces minimal color distortion — objects viewed through the lens appear closer to their true colors, which helps distinguish weld puddle behavior and base metal heat zones.
The 12.5 square inch viewing area is among the largest in any welding helmet at this price point. Lincoln rates the shell at 4.5” longer in the chin area compared to standard helmets, providing additional throat and neck coverage from UV exposure and spatter. The shade 5-13 range covers everything from low-amperage TIG work to high-amperage stick and gouging.
Per Lincoln’s technical data, the external grind mode button allows switching to shade 3.5 without lifting the helmet, a convenience feature for grinding and prep work between welds.
Best for: Fabricators and serious hobbyists who weld across multiple processes (MIG, TIG, stick) and need optical clarity that reduces eye fatigue over long sessions. The wide shade range and four-sensor array make it versatile enough for both low-amperage TIG and high-amperage stick.
Limitation: At 18 oz, it is heavier than some competitors. For all-day overhead welding, that weight difference is noticeable by mid-shift.
Miller Digital Infinity — Premium Comfort
| Spec | Value |
|---|---|
| Viewing Area | 13.4 sq in (3.93” x 2.38”) |
| Shade Range | 3, 5-13 |
| Reaction Time | 1/20,000s |
| Optical Clarity | 1/1/1/1 |
| Sensors | 4 |
| Weight | 17.3 oz |
| Power Source | Solar with lithium battery backup |
| Grind Mode | Yes (shade 3) |
| Warranty | 3 years |
| Price Range | $330-$400 |
Per Miller’s technical documentation, the Digital Infinity uses ClearLight lens technology with a 1/1/1/1 optical clarity rating and what Miller describes as an improved light state — the shade 3 light state is brighter and clearer than typical shade 4 light states, improving visibility before the arc is struck. This matters when positioning the torch or electrode on the joint.
The 13.4 square inch viewing area is the largest on this list. According to Miller’s product data, the helmet uses an InfoTrack system with an internal LCD display showing arc time, arc count, and peak amperage — useful for monitoring duty cycle and tracking weld parameters. The headgear uses Miller’s X-Mode electromagnetic sensing, which per their documentation, uses electromagnetic field detection in addition to optical sensors to prevent the lens from accidentally darkening from sunlight or other non-arc light sources.
Best for: Professional welders and shop owners who need the largest possible viewing area and premium comfort for extended sessions. The X-Mode arc detection is particularly useful for outdoor welding where sunlight can cause false triggers on standard helmets.
Limitation: The highest price on this list at $330-$400. The performance difference over the Lincoln Viking 3350 is marginal for most hobbyists. The premium is justified primarily for professionals welding six or more hours per day.
ESAB Sentinel A50 — Best Ergonomic Design
| Spec | Value |
|---|---|
| Viewing Area | 9.22 sq in (3.93” x 2.36”) |
| Shade Range | 5-13 |
| Reaction Time | 1/25,000s |
| Optical Clarity | 1/1/1/2 |
| Sensors | 5 |
| Weight | 21 oz |
| Power Source | Solar with CR2450 lithium battery backup |
| Grind Mode | Yes (external) |
| Warranty | 2 years |
| Price Range | $250-$310 |
According to ESAB’s specifications, the Sentinel A50 features a 1/25,000 second reaction time — the fastest on this list. The five-sensor array (compared to four on most competitors) provides additional arc detection redundancy, which per ESAB’s documentation reduces the chance of the lens failing to darken during out-of-position or obstructed welding.
ESAB describes the Sentinel A50’s shell design as a departure from traditional helmet geometry. Per their product data, the hood wraps closer to the head than conventional designs, which is intended to reduce overall bulk and improve balance. The touch-sensitive control panel inside the helmet allows shade and sensitivity adjustments without removing the helmet.
The viewing area at 9.22 square inches is smaller than the Lincoln and Miller, but the lens aspect ratio (wider than tall) prioritizes horizontal field of view, which according to ESAB’s documentation aligns with natural eye movement during welding.
Best for: Welders who prioritize reaction speed and a modern, close-fitting helmet design. The five-sensor array and fastest-in-class reaction time make it well-suited for TIG welding at low amperages where arc detection reliability is most critical.
Limitation: At 21 oz, it is the heaviest helmet on this list. The 2-year warranty is shorter than Lincoln and Miller offerings. The optical clarity rating of 1/1/1/2 (angle dependence) is slightly below the 1/1/1/1 achieved by the Lincoln and Miller lenses.
Hobart 770890 — Best Budget-Friendly Option
| Spec | Value |
|---|---|
| Viewing Area | 7.5 sq in (3.6” x 2.1”) |
| Shade Range | 10-13 |
| Reaction Time | 1/12,000s |
| Optical Clarity | 1/1/1/2 |
| Sensors | 2 |
| Weight | 16 oz |
| Power Source | Solar with AAA battery backup |
| Grind Mode | No |
| Warranty | 1 year |
| Price Range | $80-$120 |
Per Hobart’s product specifications, the 770890 provides a 1/12,000 second switching speed and two arc sensors. The shade range of 10-13 covers standard MIG, stick, and flux-core applications but does not include low shades needed for low-amperage TIG welding. According to Hobart’s data sheet, the sensitivity and delay controls are accessible via knobs inside the helmet shell.
At 16 oz, it is the lightest helmet on this list. Hobart specifies AAA battery backup alongside solar charging, meaning battery replacement uses standard, widely available batteries rather than proprietary cells.
The 7.5 square inch viewing area is adequate for hobbyist MIG and stick welding, though noticeably smaller than premium helmets. Per Hobart’s documentation, the headgear uses a ratchet adjustment system with a padded headband.
Best for: Hobbyists and beginners on a budget who primarily weld MIG or stick and need a reliable, lightweight helmet from a recognized brand. Paired with a MIG welder for beginners, this represents a solid entry-level setup.
Limitation: Two sensors increase the risk of the lens not darkening if one sensor is blocked. No grind mode means lifting the helmet for grinding tasks. The narrower shade range (10-13) eliminates low-amperage TIG work. The 1-year warranty is the shortest here.
YesWelder LYG-M800H — Best Entry-Level
| Spec | Value |
|---|---|
| Viewing Area | 14.5 sq in (3.94” x 3.66”) |
| Shade Range | 4/5-9, 9-13 |
| Reaction Time | 1/10,000s |
| Optical Clarity | 1/1/1/2 |
| Sensors | 4 |
| Weight | 19.5 oz |
| Power Source | Solar with lithium battery backup |
| Grind Mode | Yes |
| Warranty | 2 years |
| Price Range | $50-$80 |
According to YesWelder’s specifications, the LYG-M800H offers the largest viewing area on this list at 14.5 square inches — exceeding even the Miller Digital Infinity. The lens provides a dual shade range: shade 4/5-9 for low-amperage work and grinding, plus shade 9-13 for standard welding. Four arc sensors provide better detection coverage than two-sensor budget competitors.
Per YesWelder’s product data, the helmet includes both sensitivity and delay adjustment knobs. The reaction time of 1/10,000 second is the slowest on this list, which may be noticeable during rapid tack welding sequences or very low-amperage TIG work.
Best for: Beginners and budget-conscious buyers who want a large viewing area and four-sensor coverage without the $250+ price tag. The feature set on paper exceeds many helmets at twice the price.
Limitation: YesWelder is a newer brand without established long-term reliability data. Per aggregated user feedback on third-party review platforms, lens clarity and headgear durability are the most common concerns. The 1/10,000s reaction time is adequate for MIG and stick but may be too slow for comfortable low-amperage TIG welding. Optical quality claims should be evaluated cautiously — third-party optical testing data for this model is not publicly available.
How Auto-Darkening Welding Helmets Work
Auto-darkening helmets use a liquid crystal display (LCD) lens that switches from a light state (shade 3–4, allowing normal vision) to a dark state (shade 9–13) in response to arc detection. Per manufacturer technical documentation, the core components are:
The LCD filter lens. An auto-darkening lens consists of several layers: UV/IR filter glass (permanent protection against ultraviolet and infrared radiation regardless of switching state), polarizing filters that control light transmission, and liquid crystal cells that realign under voltage to block light. The UV/IR filter layer provides continuous eye protection — if the LCD electronics fail, the lens defaults to a dark state (fail-safe design) rather than clear. Per ANSI Z87.1 standards, auto-darkening lenses must provide UV protection regardless of switching state.
Arc sensors. Photoelectric sensors detect the visible light spike produced by an arc strike. Per manufacturer specifications, most helmets use 2–4 sensors. A 4-sensor helmet maintains arc detection even when one sensor is blocked by the electrode holder, a work clamp, or awkward positioning. In tight corners or under equipment, a 2-sensor helmet may fail to darken if both sensors face away from the arc — the primary advantage of 4-sensor designs.
Switching speed (reaction time). Expressed in fractions of a second — typically 1/25,000s to 1/30,000s for professional helmets, 1/10,000s to 1/20,000s for budget units. Per ANSI Z87.1-2015, the standard requires darkening in no more than 1/4 of a millisecond (1/4,000s) for welding shade use. Professional helmets exceed this standard significantly. The practical difference: at 1/25,000s, the lens darkens before the human eye can register a light change; at 1/10,000s (the minimum safety threshold), a brief flash is perceptible under certain conditions. For MIG and stick welding, 1/10,000s is safe. For TIG welding at low amperage where arc intensity is lower, a faster 1/25,000s reaction time ensures consistent darkening.
Solar assist and battery power. Most auto-darkening helmets use a lithium battery backed by solar cells. Per manufacturer documentation, solar cells do not power the helmet — they extend battery life. Battery life on quality helmets runs 2,000–7,000 hours, making battery replacement a years-long maintenance interval. Some helmets (Lincoln Viking 3350, ESAB Sentinel) include user-replaceable batteries; others require manufacturer service.
Shade range and sensitivity adjustment. Variable shade helmets allow the user to dial the dark shade (typically 9–13) to match the welding process and amperage. Per AWS welding safety guidelines, MIG welding at 150A requires shade 11; stick welding at 200A requires shade 12; TIG at 80A requires shade 10. A helmet fixed at shade 10 is too dark for TIG at 40A and too light for heavy stick. The sensitivity adjustment controls how bright the arc must be to trigger darkening — useful for low-amperage TIG or plasma cutting applications where reduced sensitivity prevents false triggers from shop lighting.
Who This Is NOT For
Budget auto-darkening lenses with reaction times slower than 1/15,000s and fewer than four sensors may fail to darken consistently at amperages below 20A — making them unsuitable for dedicated low-amperage TIG work. Four additional situations where these helmets are the wrong choice:
-
Production TIG welders working below 20 amps. At very low amperages, the arc intensity may not reliably trigger budget auto-darkening lenses. Per manufacturer documentation, helmets with reaction times slower than 1/15,000s and fewer than four sensors may fail to darken consistently at amperages below 20A. For dedicated low-amperage TIG work, the Lincoln Viking 3350 or ESAB Sentinel A50 are the minimum recommendations based on their reaction time and sensor specifications. See the best TIG welders for beginners guide for machines that pair well with these helmets.
-
Welders working primarily in direct sunlight. Standard optical sensors can produce false triggers in bright sunlight, causing the lens to darken when no arc is present. Miller’s X-Mode electromagnetic detection addresses this, but the other helmets on this list rely on optical sensing alone. A passive fixed-shade lens may be more reliable for consistent outdoor work.
-
Anyone who needs a respirator-compatible helmet. Not all helmets on this list are compatible with powered air-purifying respirators (PAPRs) or half-face respirators. If welding galvanized steel, stainless steel, or other materials that produce hazardous fumes, verify respirator compatibility with the specific helmet model before purchasing.
-
Buyers looking to spend under $40. Unbranded auto-darkening helmets below $40 frequently lack ANSI Z87.1 certification, use slow-switching lenses (1/5,000s or worse), and have no meaningful warranty. Per ANSI standards, an uncertified lens may not provide adequate UV/IR protection even in the darkened state. Eye safety should not be treated as a budget line item.

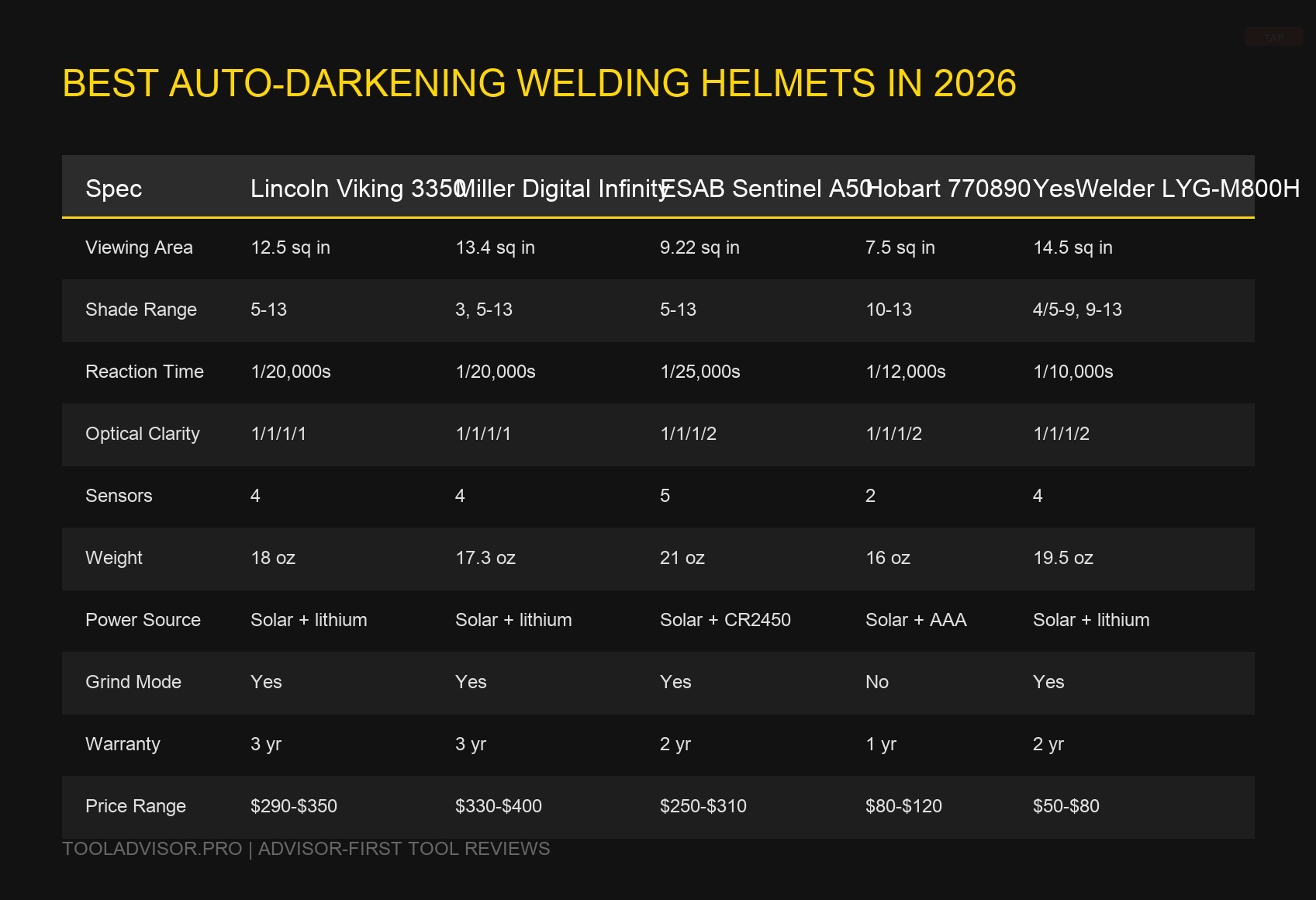

Full Comparison Table
| Spec | Lincoln Viking 3350 | Miller Digital Infinity | ESAB Sentinel A50 | Hobart 770890 | YesWelder LYG-M800H |
|---|---|---|---|---|---|
| Viewing Area | 12.5 sq in | 13.4 sq in | 9.22 sq in | 7.5 sq in | 14.5 sq in |
| Shade Range | 5-13 | 3, 5-13 | 5-13 | 10-13 | 4/5-9, 9-13 |
| Reaction Time | 1/20,000s | 1/20,000s | 1/25,000s | 1/12,000s | 1/10,000s |
| Optical Clarity | 1/1/1/1 | 1/1/1/1 | 1/1/1/2 | 1/1/1/2 | 1/1/1/2 |
| Sensors | 4 | 4 | 5 | 2 | 4 |
| Weight | 18 oz | 17.3 oz | 21 oz | 16 oz | 19.5 oz |
| Power Source | Solar + lithium | Solar + lithium | Solar + CR2450 | Solar + AAA | Solar + lithium |
| Grind Mode | Yes | Yes | Yes | No | Yes |
| Warranty | 3 yr | 3 yr | 2 yr | 1 yr | 2 yr |
| Price Range | $290-$350 | $330-$400 | $250-$310 | $80-$120 | $50-$80 |
Frequently Asked Questions
How long do auto-darkening welding helmets last?
According to manufacturer documentation, premium auto-darkening helmets with solar-powered lenses and lithium battery backup typically last 7-10 years with proper care. The auto-darkening filter (ADF) lens itself may need replacement after 5-7 years as the liquid crystal elements degrade, though this varies by usage and storage conditions. Budget helmets with battery-only power may have shorter service lives.
What shade number should I use for MIG welding?
Per ANSI Z49.1 welding safety guidelines, shade 10-13 is appropriate for MIG welding, with the specific shade depending on amperage. Shade 10 is typically sufficient for lower-amperage MIG work (under 60A), while shade 12-13 is recommended for higher amperages (150A+). When in doubt, start with a darker shade and reduce until visibility is comfortable without eye strain.
Are cheap auto-darkening helmets safe?
Auto-darkening helmets that carry ANSI Z87.1 certification provide the required UV and IR protection in both the light and dark states. The safety concern with budget helmets is reaction time — per manufacturer specifications, slower lenses (1/10,000 second or worse) may not darken quickly enough for low-amperage TIG welding, increasing flash burn risk. For MIG and stick welding, a certified budget helmet with at least a 1/10,000-second reaction time is generally adequate.
What You’ll Also Need
- Welding helmet outer lens cover plate — 4.5x5.25 inch — Disposable clear polycarbonate covers protect the auto-darkening cartridge from weld spatter; replace every few hours of heavy welding to maintain arc visibility. Search: “welding helmet lens replacement 4.5x5.25,” “welding helmet cover lens.” Check price on Amazon →
- Welding helmet inner lens cover plate — The inner cover sits behind the cartridge and protects from fumes and fine spatter; replacing both inner and outer covers restores lens clarity without replacing the cartridge. Search: “welding helmet inner lens cover plate,” “inside cover lens welding helmet.” Check price on Amazon →
- Auto-darkening lens replacement cartridge — When the cartridge degrades or batteries are non-replaceable, a direct replacement cartridge restores full auto-darkening function; verify the cartridge dimensions match your shell. Search: “auto darkening lens replacement,” “welding helmet auto darkening cartridge replacement.” Check price on Amazon →
- Welding helmet headgear replacement — Headgear harnesses wear out from sweat and repeated adjustment; a replacement harness extends helmet life significantly rather than purchasing a new unit. Search: “welding helmet headgear replacement,” “welding helmet head band replacement.” Check price on Amazon →
- CR2032 battery — welding helmet — Most solar-assist helmets use CR2032 cells as backup power; low batteries cause sluggish darkening response which is a flash burn hazard. Search: “welding helmet battery CR2032,” “CR2032 lithium battery.” Check price on Amazon →
- Welding lens shade 10 — passive backup — A passive shade 10 fixed lens is a reliable backup when the auto-darkening cartridge fails mid-session; shade 10 covers MIG and stick processes up to approximately 200 amps. Search: “welding lens shade 10,” “passive welding lens replacement.” Check price on Amazon →
