Best Brad Nailers for Trim and Finish Work in 2026
A brad nailer drives 18-gauge nails — thinner and shorter than the 16-gauge nails in a finish nailer — for applications where a smaller hole matters as much as the fastening itself. Cabinet face frames, thin molding strips, craft trim, window stops, and light base shoe are the core use cases. For heavier structural trim (thick baseboard, door casing, stair treads), a finish nailer is the appropriate tool. This guide compares four cordless 18-gauge brad nailers based on manufacturer specifications.
18-Gauge Brad Nailer vs. 16-Gauge Finish Nailer: Choosing Correctly
Per fastener industry standards, the gauge number describes wire diameter — lower numbers are thicker:
| Gauge | Nail Diameter | Typical Length | Primary Applications |
|---|---|---|---|
| 18-gauge (brad) | 0.0475” | 5/8” – 2-1/8” | Cabinet face frames, thin molding, window stops, light trim |
| 16-gauge (finish) | 0.0625” | 1” – 2-1/2” | Door casing, baseboard, stair treads, crown molding |
| 15-gauge (angled finish) | 0.072” | 1-1/4” – 2-1/2” | Heavy baseboard, exterior trim, structural finish connections |
The 18-gauge nail leaves a smaller hole — typically 0.05 inches — that disappears under most stains and many paints without filler. The tradeoff is holding power: a 16-gauge nail holds significantly more load per fastener. For decorative trim applied over a glued substrate, or for light-duty cabinet work, the brad nailer is the right choice. For structural trim that must resist racking and movement, use a finish nailer.
Key Specifications
Nail length range: Most 18-gauge brad nailers accept 5/8 inch to 2-1/8 inch nails. Verify the range before purchasing if long-nail applications (1-3/4 inch or longer into thick stock) are common.
Depth adjustment: Tool-free depth adjustment dials allow setting nail depth without a separate wrench. This matters when switching between materials — face-nailing 1/4-inch plywood back panels requires different depth settings than attaching 3/4-inch hardwood trim to a wall.
Dry-fire lockout: A mechanism that stops the nailer from firing when the magazine is empty, preventing bare-striker marks on the work surface. Standard on professional models; sometimes omitted from budget units.
No-mar tip: A rubber or plastic nose tip that contacts the workpiece before the nail drives, preventing dents and scuffs on finished surfaces. Replaceable when worn.
Top 18-Gauge Brad Nailers

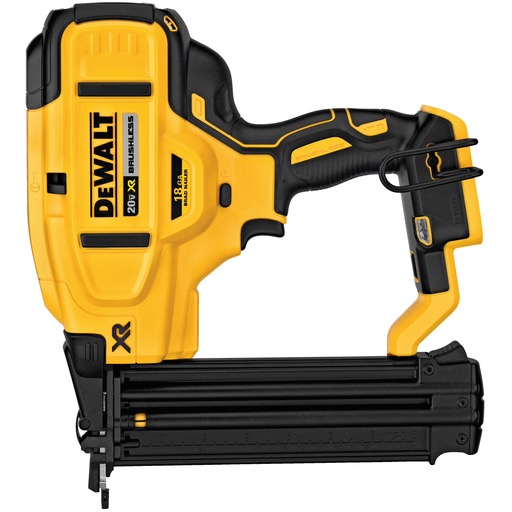

DeWalt DCN680 — Best Overall
| Specification | Value |
|---|---|
| Battery Platform | 20V MAX |
| Nail Gauge | 18-gauge |
| Nail Length Range | 5/8” – 2-1/8” |
| Magazine Capacity | 110 nails |
| Shots Per Charge | Up to 1,100 (2.0 Ah) |
| Weight (bare tool) | 5.0 lbs |
| Depth Adjustment | Tool-free dial |
| Dry-Fire Lockout | Yes |
| No-Mar Tip | Yes |
| Warranty | 3 years |
| Price Range | $130–$170 (bare tool) |
Per DeWalt’s specifications, the DCN680 uses a brushless motor with a sequential actuation mechanism — each nail requires a deliberate trigger pull and nose contact, preventing accidental double-nailing. The 110-nail magazine capacity is among the highest in this comparison, reducing reload interruptions during production trim runs. DeWalt rates the tool at up to 1,100 nails per charge on a 2.0 Ah battery — a full day of light trim work on a single pack. At 5.0 lbs, the DCN680 sits in the middle of the weight range for cordless brad nailers.
Best for: DeWalt 20V MAX platform users who need a reliable all-day brad nailer for cabinet installation, light trim, and window casings. The high magazine capacity and long per-charge runtime reduce interruptions in production work.
Milwaukee 2746-20 M18 — Best for M18 Platform Crews
| Specification | Value |
|---|---|
| Battery Platform | M18 |
| Nail Gauge | 18-gauge |
| Nail Length Range | 5/8” – 2-1/8” |
| Magazine Capacity | 100 nails |
| Shots Per Charge | Up to 1,000 (2.0 Ah) |
| Weight (bare tool) | 5.4 lbs |
| Depth Adjustment | Tool-free dial |
| Dry-Fire Lockout | Yes |
| No-Mar Tip | Yes |
| Warranty | 5 years |
| Price Range | $140–$180 (bare tool) |
Per Milwaukee’s specifications, the 2746-20 uses the M18 FUEL brushless motor system and delivers consistent drive power from the first nail to the last on a charge. The 5-year tool warranty is the longest in this comparison. At 5.4 lbs, it is the heaviest model here — a noticeable difference for overhead work and extended use. Milwaukee rates the nailer at 1,000 shots per 2.0 Ah charge, with significantly higher capacity on larger M18 packs. The dry-fire lockout and sequential trigger prevent surface damage and double-drives.
Best for: Contractors already invested in the M18 platform who want a brad nailer that shares batteries with their existing tool lineup. The 5-year warranty is the strongest coverage available in this category.
Makita XNB01Z — Best for Extended Overhead Work
| Specification | Value |
|---|---|
| Battery Platform | 18V LXT |
| Nail Gauge | 18-gauge |
| Nail Length Range | 5/8” – 2” |
| Magazine Capacity | 100 nails |
| Shots Per Charge | Up to 1,300 (3.0 Ah) |
| Weight (bare tool) | 4.8 lbs |
| Depth Adjustment | Tool-free dial |
| Dry-Fire Lockout | Yes |
| No-Mar Tip | Yes |
| Warranty | 3 years |
| Price Range | $120–$160 (bare tool) |
Per Makita’s specifications, the XNB01Z is the lightest model in this comparison at 4.8 lbs and delivers the highest shots-per-charge rating (1,300 on a 3.0 Ah LXT battery). The lighter weight and higher runtime make it the strongest choice for extended overhead trim work — ceiling molding, upper cabinet face frames, and crown applications where arm fatigue accumulates. Makita’s maximum nail length tops out at 2 inches rather than 2-1/8 inches, which is sufficient for the vast majority of brad nail applications but worth noting if 2-1/8-inch nails are required.
Best for: Finish carpenters and cabinet installers who spend significant time on overhead work. The weight-to-runtime ratio is the best in this comparison.
Ryobi PCL310B1 — Best Budget Option
| Specification | Value |
|---|---|
| Battery Platform | PCL (18V ONE+) |
| Nail Gauge | 18-gauge |
| Nail Length Range | 5/8” – 2” |
| Magazine Capacity | 105 nails |
| Shots Per Charge | Up to 700 (1.5 Ah) |
| Weight (bare tool) | 5.3 lbs |
| Depth Adjustment | Tool-free dial |
| Dry-Fire Lockout | Yes |
| No-Mar Tip | Yes |
| Warranty | 3 years |
| Price Range | $70–$100 (bare tool) |
Per Ryobi’s specifications, the PCL310B1 uses the 18V ONE+ platform — the largest battery ecosystem by tool count in the consumer/prosumer space. At $70–$100 for the bare tool, it undercuts professional models by $50–$80 while offering comparable nail range and magazine capacity. The 700-shot-per-charge rating is the lowest in this comparison, and Ryobi’s brushed motor has lower runtime efficiency than the brushless motors in competing professional models. The ONE+ platform makes it a natural addition for homeowners and light-duty users already using Ryobi for other tasks.
Best for: Homeowners, occasional remodelers, and trim hobbyists who need a brad nailer for periodic projects. The low bare-tool price and ONE+ compatibility make it the most accessible entry point in the category.
Limitation: Brushed motor reduces runtime compared to brushless competitors. Not recommended for sustained production use — a trim crew installing 500+ linear feet of molding per day would benefit from the brushless models above.
Comparison Table
| Model | Platform | Nail Range | Shots/Charge | Weight | Warranty | Price |
|---|---|---|---|---|---|---|
| DeWalt DCN680 | 20V MAX | 5/8”–2-1/8” | 1,100 | 5.0 lbs | 3 years | $130–$170 |
| Milwaukee 2746-20 | M18 | 5/8”–2-1/8” | 1,000 | 5.4 lbs | 5 years | $140–$180 |
| Makita XNB01Z | 18V LXT | 5/8”–2” | 1,300 | 4.8 lbs | 3 years | $120–$160 |
| Ryobi PCL310B1 | 18V ONE+ | 5/8”–2” | 700 | 5.3 lbs | 3 years | $70–$100 |
Who This Is NOT For
Per fastener industry standards and contractor usage data, an 18-gauge brad nailer is the wrong tool in these situations:
- Heavy baseboard and door casing. 3/4-inch thick hardwood baseboard and solid wood door casing require 16-gauge finish nails for adequate holding power — particularly in high-traffic areas where impact and racking loads are common. A brad nailer is adequate only when supplemented with adhesive or when the substrate allows glue.
- Structural connections. Any connection subject to shear or withdrawal load — stair treads, newel posts, structural blocking — requires 15- or 16-gauge nails minimum. Brad nails are trim fasteners, not structural fasteners.
- Exterior trim. Moisture cycling and UV exposure accelerate fastener failure in 18-gauge nails. Stainless steel 16-gauge finish nails or stainless brad nails are required for exterior trim applications where rust staining is unacceptable. Verify the nail material before specifying for exterior work.
- Anyone without a finish nailer for heavier trim. A brad nailer is a complement to a finish nailer, not a replacement. A shop or truck with only a brad nailer will frequently encounter applications — door casing, thick baseboard, cap rail — where the tool is inadequate.
What You’ll Also Need
- 18-gauge brad nails — 1-1/4 inch, galvanized — The most common length for baseboard and interior trim attachment to drywall over studs. Galvanized coating prevents rust staining in humid environments. Search: “18 gauge brad nails 1-1/4 inch,” “brad nails 18ga 1.25 inch.” Check price on Amazon →
- 18-gauge brad nails — 5/8 inch — For face-nailing thin molding strips, cabinet back panels, and decorative trim under 1/2-inch thickness. Short brad nails in galvanized or stainless for light-duty applications. Search: “18 gauge brad nails 5/8 inch,” “brad nails 18ga short.” Check price on Amazon →
- Brad nailer no-mar tip replacement — The rubber no-mar tip scuffs and flattens over time, eventually marring finished surfaces. A replacement tip prevents workpiece damage on stained or painted trim. Search: “brad nailer no mar tip replacement,” “nailer rubber tip nose piece.” Check price on Amazon →
- Nail set punch — 1/32-inch tip — For hand-setting any brad nails that don’t fully countersink, without marring adjacent surfaces. A nail set allows precise hammer-driving the last 1/16 inch without denting the trim face. Search: “nail set punch 1/32 tip,” “trim nail set.” Check price on Amazon →
