Best Box Blades for Compact Tractors in 2026
A box blade is the most versatile land-management implement available for a compact or utility tractor. It grades driveways, backfills trenches, spreads gravel, levels building pads, and moves topsoil — tasks that would require a skid steer or hired excavation equipment without it. The box contains material on three sides, allowing the operator to carry and redistribute dirt in ways an open blade cannot. For small farm and rural property owners, a properly sized box blade transforms a compact tractor from a mowing machine into a functional ground-leveling tool.
This guide compares four 3-point hitch box blades in the $500–$2,000 range based on published manufacturer specifications, focusing on cutting edge thickness, scarifier design, blade width, and the build quality indicators that separate implements that hold up under rocky soil from those that bend on the first boulder.
Key Specifications That Determine Box Blade Performance
Per manufacturer documentation and implement dealer guidelines, the specifications that most affect how a box blade handles real field conditions are:
Blade width: Expressed in inches — typically 60, 72, or 84 inches for compact tractor applications. Wider blades move more material per pass but require more tractor horsepower to push through compacted material. Per ASABE guidelines, a 72-inch blade is the practical standard for 25-45 HP compact tractors; 60-inch blades suit sub-25 HP tractors; 84-inch and wider blades generally require 45+ HP utility tractors.
Cutting edge thickness: The bottom front blade that makes contact with the ground. Expressed in inches — common values are 1/2-inch, 5/8-inch, and 3/4-inch. Per manufacturer specifications, thicker cutting edges resist bending and wear longer in rocky soil but add weight. For gravel driveways and occasional field grading, 1/2-inch is adequate; for continuous heavy use in stony ground, 5/8-inch or thicker is preferable.
Scarifier shanks: Spring-loaded or rigid teeth that mount forward of the box blade, breaking up compacted soil and gravel before the blade passes over it. Per implement manufacturer guidelines, 4-6 scarifier shanks are standard on compact tractor implements; heavier models run 6-8. Shanks with replaceable carbide tips are preferable for rocky conditions — replacing worn tips costs $5–$15 each versus replacing a full scarifier assembly.
Back drag edge: A secondary cutting edge on the rear of the box. When the operator drags the blade backward (3-point hitch raised slightly, blade skimming the surface), the back drag edge grades the material left behind the forward pass. Per operator guides, a hardened back drag edge produces significantly better gravel driveway finishing than a plain rear plate.

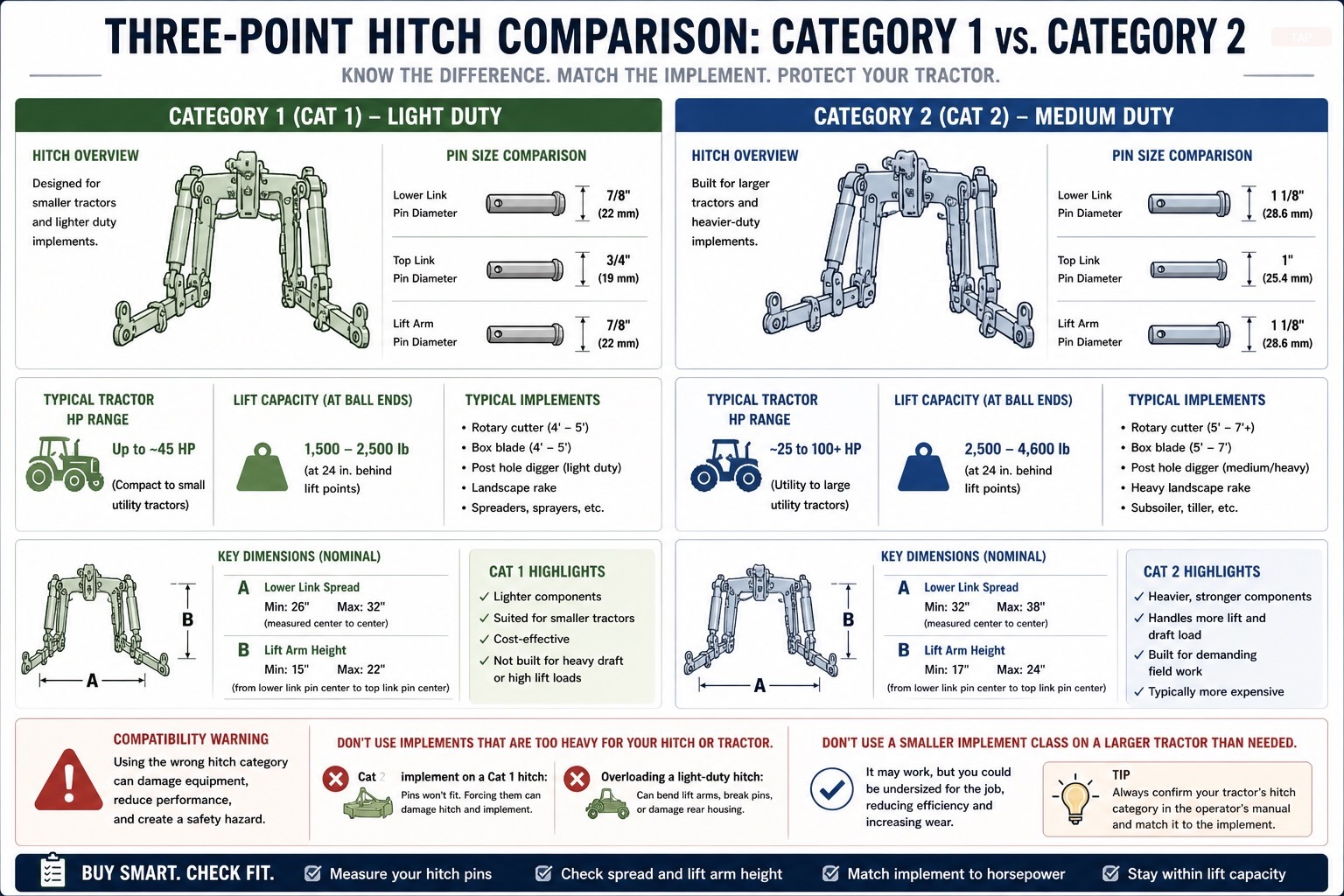

Hitch category compatibility: Category 1 (7/8-inch lower link pins) fits compact tractors in the 15-45 HP range. Category 2 (1-1/8-inch pins) fits utility tractors in the 40-100+ HP range. Most box blades in the $500–$1,000 range include adapter bushings for both categories. Per ASABE standards, implement-to-tractor hitch category match is critical for safe, low-wear operation.
Top Box Blades by Specification
Titan Attachments 72” Heavy-Duty Box Blade — Best Overall Value
| Specification | Value |
|---|---|
| Blade Width | 72 inches |
| Blade Capacity | 14 cubic feet |
| Cutting Edge | 5/8-inch x 6-inch hardened steel |
| Back Drag Edge | Yes, hardened |
| Scarifier Shanks | 6 shanks, replaceable tips |
| Hitch Category | Cat 1 and Cat 2 (bushings included) |
| Side Plates | 1/4-inch steel |
| Box Height | 18 inches |
| Weight | 480 lbs |
| Price Range | $550-$750 |
Per Titan Attachments’ product specifications, the 72-inch box blade uses a 5/8-inch hardened cutting edge and a matching hardened back drag edge on the rear plate. The six spring-loaded scarifier shanks with replaceable tips are positioned forward of the blade in a staggered pattern. Per Titan’s documentation, the side plates are 1/4-inch steel with reinforced corner gussets, and the hitch frame uses 3-inch square tubing — heavier construction than the economy-class box blades sold at comparable price points.
Best for: Small farm and rural property owners with 25-45 HP compact tractors managing gravel driveways, grading building pads, leveling pasture entrances, and general dirt work. The combination of 5/8-inch cutting edge, hardened back drag edge, and 6 replaceable scarifier tips provides good capability at a price point accessible to first-time implement buyers.
Limitation: At 480 lbs, the implement is at the upper end of what a 25 HP tractor lifts cleanly on the 3-point hitch without front ballast. Operators with sub-28 HP tractors should verify their tractor’s 3-point lift capacity (typically listed in the operator’s manual) before purchasing.
King Kutter 6-RBB-BH Box Blade — Best for Rocky Soil
| Specification | Value |
|---|---|
| Blade Width | 72 inches |
| Cutting Edge | 3/4-inch x 6-inch hardened steel |
| Back Drag Edge | Yes |
| Scarifier Shanks | 6 shanks, bolt-on replaceable |
| Hitch Category | Cat 1 and Cat 2 |
| Side Plates | 3/16-inch steel |
| Box Height | 18 inches |
| Weight | 510 lbs |
| Price Range | $700-$950 |
Per King Kutter’s product documentation, the RBB series box blades use a 3/4-inch cutting edge — the thickest standard specification on this list — designed for operators working in gravel, rocky soil, and construction sites where blade contact with embedded rock is frequent. The 3/4-inch thickness resists bending and deformation under impact loads that would dish a 1/2-inch or 5/8-inch edge over time. Per King Kutter’s data, the bolt-on scarifier shanks use a replaceable bolt-on tip design requiring no welding for field repair.
Best for: Operators in rocky terrain — Appalachian foothills, limestone country, glacial till areas — where the cutting edge makes regular contact with embedded rock. The thicker cutting edge substantially outlasts 1/2-inch alternatives in these conditions, making the higher initial cost economical over time.
Limitation: At 510 lbs, this is the heaviest implement on the list. Operators with compact tractors in the 25-35 HP range should confirm lift capacity with front ballast. The 3/16-inch side plates are slightly lighter than the Titan’s 1/4-inch construction.
Land Pride BB2572 Box Blade — Best for Long-Term Reliability
| Specification | Value |
|---|---|
| Blade Width | 72 inches |
| Cutting Edge | 5/8-inch x 6-inch reversible |
| Back Drag Edge | Yes, reversible |
| Scarifier Shanks | 5 shanks, replaceable |
| Hitch Category | Cat 1 and Cat 2 |
| Side Plates | 1/4-inch steel |
| Box Height | 18 inches |
| Weight | 490 lbs |
| Warranty | 1 year parts and labor |
| Price Range | $1,100-$1,500 (dealer pricing) |
According to Land Pride’s specifications, the BB2572 uses reversible cutting edges on both the front blade and back drag edge. When one face of the cutting edge wears, the operator flips it to expose fresh hardened steel, effectively doubling edge service life before replacement. Per Land Pride’s documentation, the 5-shank scarifier uses replaceable tips with a bolt-in design compatible with universal aftermarket tip sizes. Land Pride is a Kubota subsidiary; their dealer network provides parts availability and warranty service that independent brands cannot match.
Note: Land Pride implements are sold through authorized dealers, not on Amazon. Contact a local Kubota or Land Pride dealer for pricing and availability.
Best for: Operators who want the lowest total cost of ownership over 5+ years. The reversible edges reduce consumable costs significantly, and the Land Pride dealer network ensures parts availability for long-service implements.
Limitation: Dealer-only distribution means no online purchasing and pricing varies by region. Land Pride products are typically 30-50% more expensive than Titan or King Kutter at the point of purchase.
Behlen Country 60” Box Blade — Best for Sub-30 HP Tractors
| Specification | Value |
|---|---|
| Blade Width | 60 inches |
| Cutting Edge | 1/2-inch x 4-inch hardened steel |
| Back Drag Edge | Yes |
| Scarifier Shanks | 4 shanks |
| Hitch Category | Cat 1 |
| Weight | 350 lbs |
| Price Range | $450-$600 |
Per Behlen Country’s product specifications, the 60-inch box blade is sized for compact and sub-compact tractors in the 15-30 HP range. At 350 lbs, it lifts cleanly on tractors with limited 3-point capacity. The Category 1 hitch is standard without adapter requirements, simplifying connection. Per manufacturer data, the 4 scarifier shanks are adequate for softened topsoil and gravel grading; operators working in heavily compacted material or rocky ground would benefit from a 6-shank design.
Best for: Subcompact and compact tractor owners with machines in the 15-28 HP range — JD 1025R, Kubota BX series, Mahindra eMAX — where a 72-inch 480-lb implement exceeds lift capacity or creates instability. For related tractor guidance, see best subcompact tractors.
Limitation: 60-inch blade width moves less material per pass than 72-inch models, extending time for large grading jobs. The 1/2-inch cutting edge is the lightest on this list and wears faster in rocky conditions.
Comparison Table
| Model | Width | Cutting Edge | Scarifiers | Back Drag | Cat | Weight | Price |
|---|---|---|---|---|---|---|---|
| Titan 72” HD | 72” | 5/8” hardened | 6 shank | Yes | 1 & 2 | 480 lbs | $550-$750 |
| King Kutter RBB-BH | 72” | 3/4” hardened | 6 shank | Yes | 1 & 2 | 510 lbs | $700-$950 |
| Land Pride BB2572 | 72” | 5/8” reversible | 5 shank | Reversible | 1 & 2 | 490 lbs | $1,100-$1,500 |
| Behlen Country 60” | 60” | 1/2” hardened | 4 shank | Yes | 1 | 350 lbs | $450-$600 |
Who This Is NOT For
- Operators expecting to grade like a motor grader. A box blade on a compact tractor moves material effectively but cannot match the blade angle control, cutting depth, and surface precision of a dedicated grader. For road-grade surface finishing on long driveways, a motor grader or a hired grading contractor produces better results than a tractor box blade.
- Jobs requiring significant downhill cutting. Box blades are most effective moving material forward and backfilling. Cutting down a slope aggressively requires more tractor control than most compact tractor operators develop quickly. For significant earthwork, a skid steer or mini excavator is safer and more productive.
- Buyers with tractors under 20 HP. Sub-20 HP tractors lack the hydraulic capacity and drawbar power to push a 72-inch box blade through compacted material effectively. A 60-inch or smaller blade on a sub-compact is more productive than a full-size blade that stalls the tractor.
What You’ll Also Need
- Replacement cutting edge (5/8” x 6”, per blade width) — Cutting edges are wear items that dull and eventually require replacement; having a spare avoids downtime during peak grading season. Search: “box blade cutting edge 72 inch,” “tractor blade cutting edge replacement.” Check price on Amazon →
- Replacement scarifier tips — Carbide scarifier tips outlast standard steel tips in rocky ground; cost $5-$15 each and extend time between shank replacements significantly. Search: “scarifier tooth replacement tip,” “box blade scarifier shank tip.” Check price on Amazon →
- Ballast box or front weights — A heavy 3-point implement at the rear reduces front tractor traction; front ballast maintains steering and prevents front wheel lift on grades. Check price on Amazon →
Related Guides
- Best Tractor Implements for Small Farms — full implement selection guide
- Best Subcompact Tractors — matching tractor HP to implement size
- Best Post Hole Diggers for Small Farms — another high-use 3-point implement
Not sure which implements to buy first? The Tractor Implement Finder matches your HP and tasks to specific implements with prices, compatibility checks, and honest limitations.
Sources
- Titan Attachments 72-inch box blade product specifications (titanbrands.com)
- King Kutter RBB series product documentation (kingkutter.com)
- Land Pride BB2572 specifications (landpride.com)
- Behlen Country box blade product data (behlen-country.com)
- ASABE S217.12 — Three-Point Free-Link Hitch attachment standards
